Specialty Tool & Die Co., Inc.

Specialty Tool & Die is a full service integrator for your industrial needs. We can provide complete turnkey projects or just the build aspect of your project.


SPECIALTY MACHINES
Specialty Tool & Die Co., Inc. specializes in the design and build of
  Automated machine tools
  Semi-automated machine tools
  Assembly machines
  Weld machines
  Hydraulic presses
  Pneumatic presses
  Special test machines

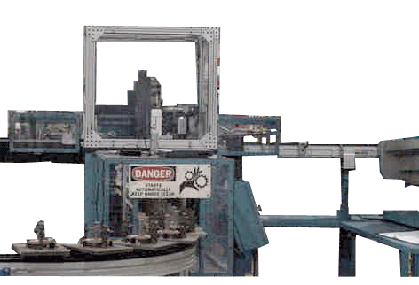

DOC Auto Stack Machine


DONUT OIL COOLER (DOC) CORE AUTO STACK ASSEMBLY MACHINE
  This machine automatically stacks core components onto a pallet before being placed onto a conveyor which transfer the assembled unit into an automatic weld station.

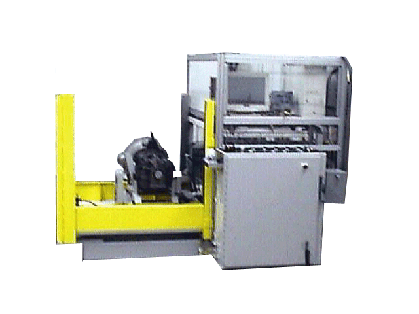

NV 5600 Manual Transmission Error Proof Verification Machine


NV 5600 MANUAL TRANSMISSION ERROR PROOF VERIFICATION MACHINE
This machine performs 18 different checks on final assembled transmission.  The machine verifies that all brackets were installed, measures the play in the input shaft and checks the weight of the trasmission.  All checks are then stored on the customer network.

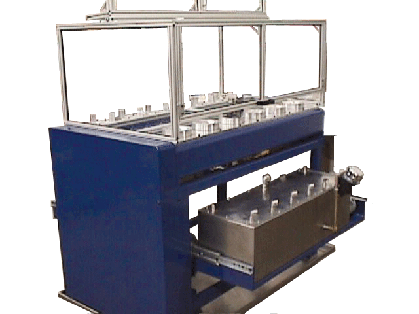

Mechanical Fuel Pump Durability Test Station


MECHANICAL FUEL PUMP DURABILITY TEST STATION

This machine performs a durability cycle test on two types of mechanical fuel pumps.  This machine can test 12 pumps simultaneously driven from one motor.

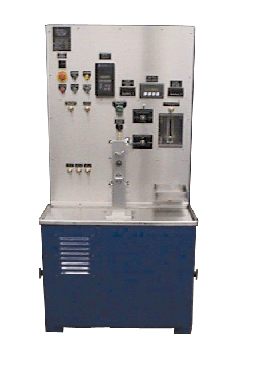

Mechanical Fuel Pump Test Stand


MECHANICAL FUEL PUMP "PRESSURE, VACUUM, AND FLOW" TEST STAND
This machine perform pressure, vacuum, and flow tests on a mechanical fuel pump.

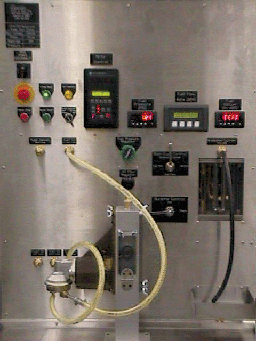

Mechanical Fuel Pump Test Stand Panel

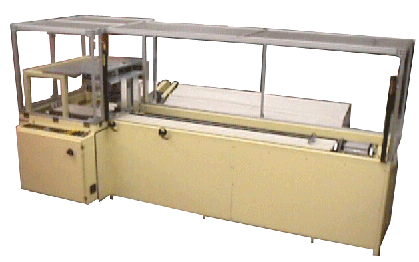

Rubber Door Seals Cut-off Machine


RUBBER DOOR SEALS CUT OFF MACHINE
  This machine would cut door and window seals to its final length.  This machine was adjustable to do different length of cuts.

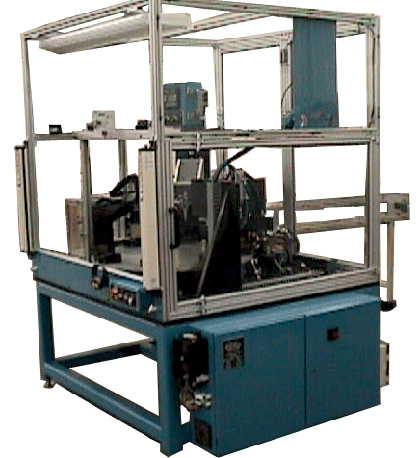

DOC Oil Auto Leak Tester


DONUT OIL COOLER (DOC) OIL SIDE AND WATER SIDE AUTO LEAK TEST MACHINE

  This machine performs leak tests on the oil side and water side of oil coolers.  This machine has the capacity of testing 12 different models of oil coolers.

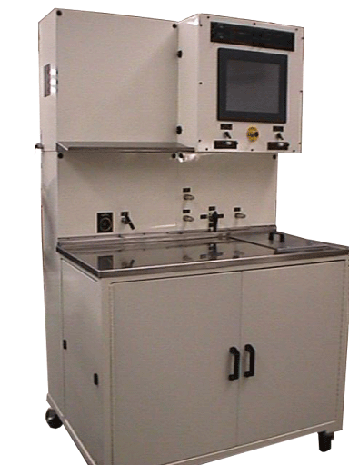

Warranty Lab Flow Stand


WARRANTY LAB FLOW STAND

  This machine test various fuel pumps for warranty issues.  This machine measures and records voltage, amperage pressure, and flow of various pumps with the use of LABVIEW software.



Fuel Tank Sender Unit Durability Tester


FUEL TANK SENDER UNIT DURABILITY TESTER

  This machine test the durability of 3 Fuel Tank Sender Units per tank (9 Total).  Each tank is independent from each other with the ability to stop/start each test cycle separately and to vary the cycle test times.



Fuel Tank Sender Unit Durability Tester Control Enclosure
