Specialty Design and Machine Controls
Specialty Tool & Die, Inc. is a provider of concept design research and development, mechanical design, electrical engineering design, custom panel building, PLC based machine control design, pneumatic and hydraulic systems. We provide full mechanical drawing packages, bill of materials, electrical schematics, pneumatic schematics, hydraulic schematics and complete software documentation for each customer's design project. Our drafting is electronically generated utilizing the latest version of Solid Works design software.
|
|
MECHANICAL DESIGN
This mechanical assembly drawing was generated by utilizing the latest version of Solid Works design software.
|
PNEUMATIC/HYDRAULIC DESIGN
A pneumatic schematic for a 3-station Auto Leak Test Machine
|
ELECTRIC CONTROLS DESIGN

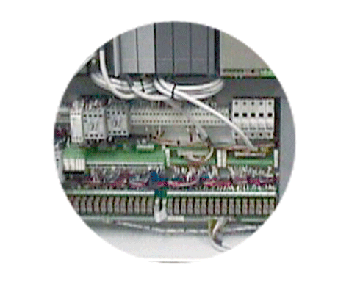

MACHINE CONTROL PANEL FOR DOC COOLER AUTO TEST MACHINE
This machine control panel was designed and built at Specialty Tool & Die Co., Inc.
|
|
|
|
|
|
